Sale!
£1,750.00 Ex. VAT£1,400.00 Ex. VAT
- Description
- Additional information
- Brand
Description

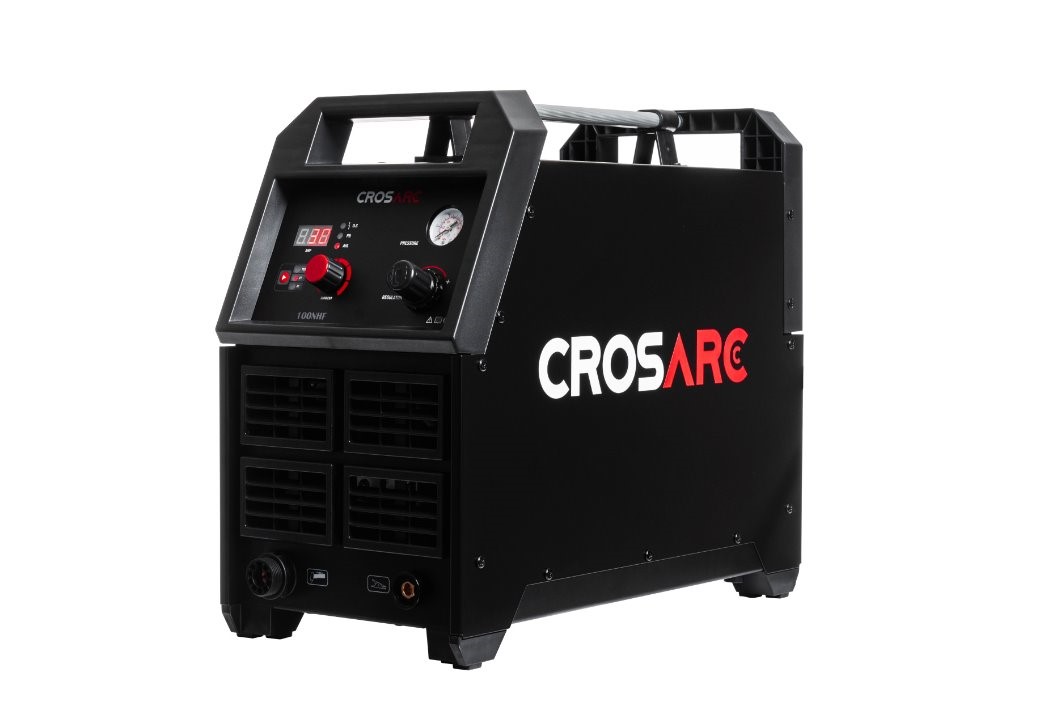

The CROSARC PLASMA 100 NHF is a latest technology IGBT inverter based plasma cutting power source, operating from a 400v mains supply. This highly portable machine utilises the latest evolution in plasma cutting technology, the CROSARC PLASMA 100 NHF incorporates the latest design in non HF hand torches and offers smooth and flexible operation for a wide range of heavy duty industrial and fabrication applications.
Package includes:
- 100 NHF Inverter Power Source
- 6 Mtr UPH105 Plasma Cutting Torch
- Earth Return Lead & Clamp
Options:
- Circle Cutting Attachment (WC51865)
- Inverter Trolley (CAP0216)
Features:
- Latest IGBT Inverter Power Source
- Digital Amp Display
- 35mm Clean Cut
- Air Pressure Adjustment
- Portable
- Generator Friendly
- Easy Set Up & Operation
Functions:
- Plasma Cutting
- 2T/4T
| TECHNICAL SPECIFICATIONS | |
| Input Voltage | 3P-400 (+-15%) 50/60Hz |
| Input Current | 23 (A) |
| Cutting Capacity Clean Cut (mm) | 35 |
| Cutting Capacity Severance (mm) | 45 |
| Air Pressure (Bar) | 5.5 |
| Current Range | 30-100 (A) |
| Duty Cycle @ 40°C | 100A @ 60% |
| Efficiency (%) | 85 |
| Power Factor @ 100% | 0.93 |
| Protection / Insulation Class | IP21/F |
| Cooling | Fan |
| Dimensions (mm) | 640 × 440 × 535 |
| Weight (Kg) | 33 |
| Conforms to
|
EN IEC 60974-1: 2022 + All: 2022
EN IEC 60974-10: 2021 |
| Approvals
|
BS EN IEC 60974-1: 2022 + All: 2022
BS EN IEC 60974-10: 2021 |
Additional information
| Weight | 150 kg |
|---|
