CrosArc Plasma 40 Compressor CAP0968

SKU: N/A
Sale!

£1,388.42 Ex. VAT£1,110.73 Ex. VAT

  • Description
  • Additional information
  • Brand

Description

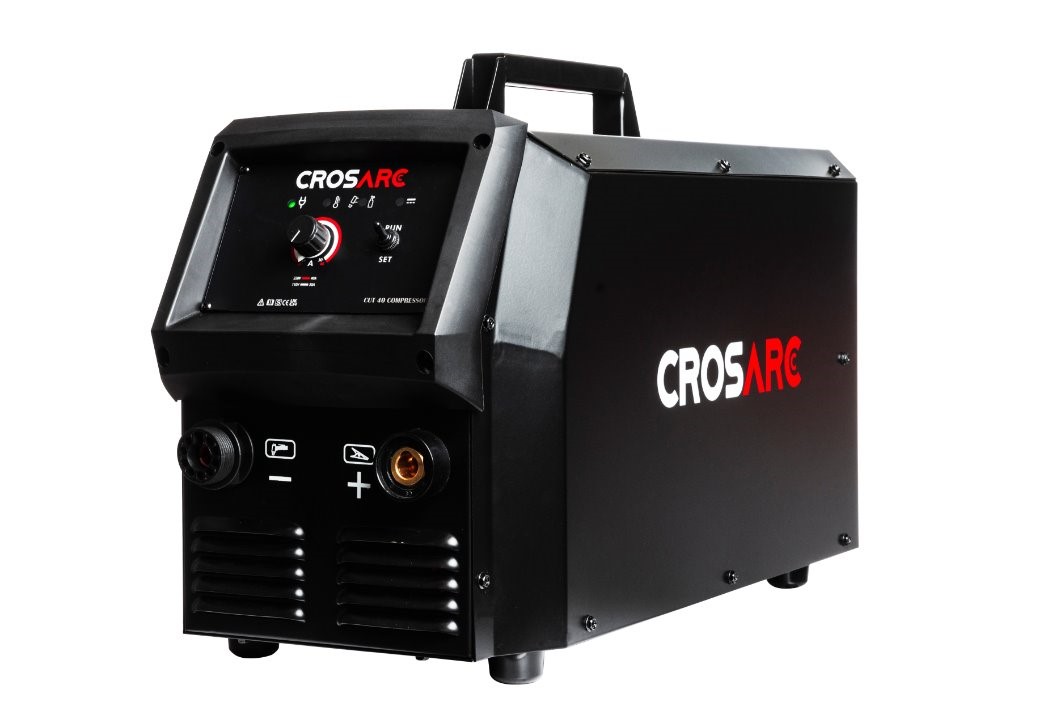

The CROSARC PLASMA 40 COMPRESSOR is highly portable inverter based PFC

Plasma cutting system with built in compressor. This state of the art machine utilises PFC system making it possible for the operator to select from a wide range of voltage input options, the advanced torch technology is used to produce excellent cutting performance on all materials upto 15mm.

Package includes:

  • 40 Compressor Inverter Power Source
  • 6 Mtr S45 Plasma Cutting Torch
  • Earth Return Lead & Clamp



Options:

  • Circle Cutting Attachment (CV0025)
  • Inverter Trolley (CAP0216)



Features:

  • Latest IGBT Inverter Power Source
  • Digital Amp Display
  • 15mm Clean Cut
  • PFC Wide Voltage Range (90-275V AC)
  • Portable
  • Generator Friendly
  • Easy Set Up & Operation



Functions:

  • Plasma Cutting
  • Ideal For Grid Cutting



TECHNICAL SPECIFICATIONS
Input Voltage  1P-90/275 (+ – 15% 50/60Hz
Input Current  16 (A)
Cutting Capacity Clean Cut (mm)  15
Cutting Capacity Severance (mm)  20
Current Range  20-40 (A)
Duty Cycle @ 40°C  40A

@ 50%

Efficiency (%)  80
Power Factor @ 100%  0.99
Protection / Insulation Class  IP23/H
Cooling  Fan
Dimensions (mm)  480 × 146 x 278
Weight (Kg)  20
Conforms to  EN IEC 60974-1: 2022 + All: 2022

EN IEC 60974-10: 2021

Approvals



BS EN IEC 60974-1: 2022 + All: 2022

BS EN IEC 60974-10: 2021



Additional information

Weight 150 kg

Brand

Cros-Arc
