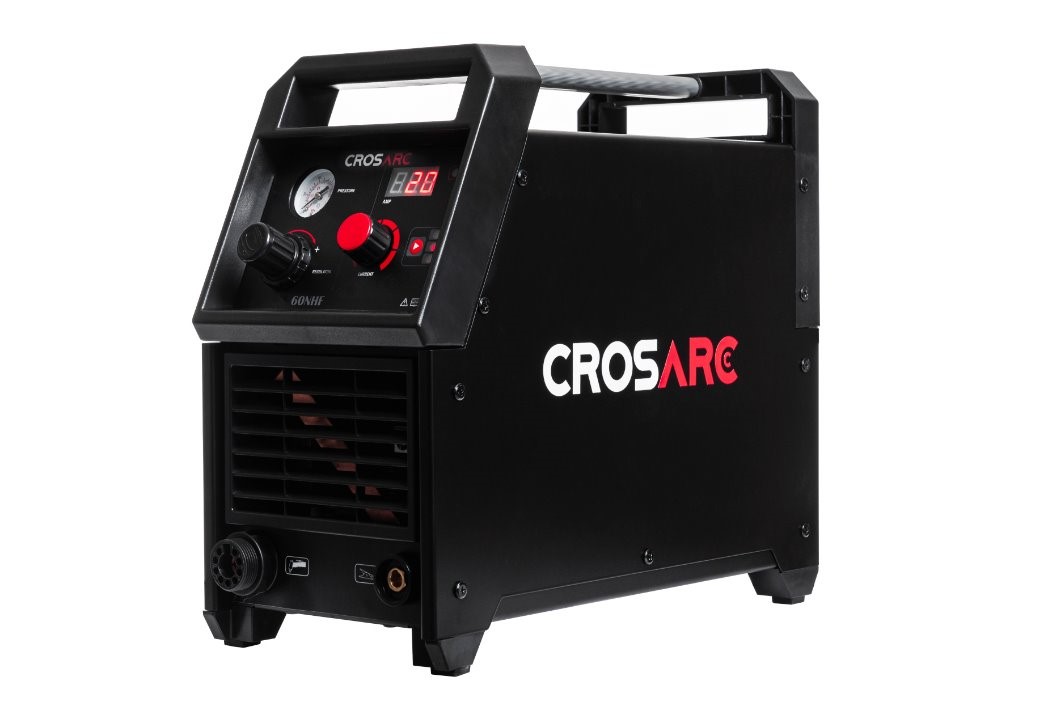

CrosArc Plasma 60 NHF CAP0951

SKU: N/A
Sale!

£1,041.67 Ex. VAT£833.33 Ex. VAT

  • Description
  • Additional information
  • Brand

Description

The CROSARC PLASMA 60 NHF is a latest technology IGBT inverter based plasma cutting power source, operating from a 400v mains supply. This highly portable machine utilises the latest evolution in plasma cutting technology, the CROSARC PLASMA 60 NHF incorporates the latest design in non HF hand torches and offers smooth and flexible operation for a wide range of industrial and fabrication applications.

Package includes:

  • 60 NHF Inverter Power Source
  • 6 Mtr PT60 Plasma Cutting Torch
  • Earth Return Lead & Clamp
  • Options:
  • Circle Cutting Attachment (SCP2550)
  • Inverter Trolley (CAP0216)



Features:

  • Latest IGBT Inverter Power Source
  • Digital Amp Display
  • 20mm Clean Cut
  • Air Pressure Adjustment
  • Portable
  • Generator Friendly
  • Easy Set Up & Operation



Functions:

  • 2T/4T
  • Plasma Cutting



TECHNICAL SPECIFICATIONS
Input Voltage  3P-400 (+ – 15%) 50/60Hz
Input Current  20 (A)
Cutting Capacity Clean Cut (mm)  20
Cutting Capacity Severance (mm)  25
Air Pressure (Bar)  5.5
Current Range  20-60 (A)
Duty Cycle @ 40°C  60A @ 40%
Efficiency (%)  85
Power Factor @ 100%  0.93
Protection / Insulation Class  IP21/F
Cooling  Fan
Dimensions (mm)  605 × 305 x 555
Weight (Kg)  20
Conforms to

CE

EN IEC 60974-1: 2022 + All: 2022

EN IEC 60974-10: 2021

Conforms to

UK

CA

BS EN IEC 60974-1: 2022 + All: 2022

BS EN IEC 60974-10: 2021

Additional information

Weight 150 kg

Brand

Cros-Arc
